Modular HVAC Units 20 to 80 Tons

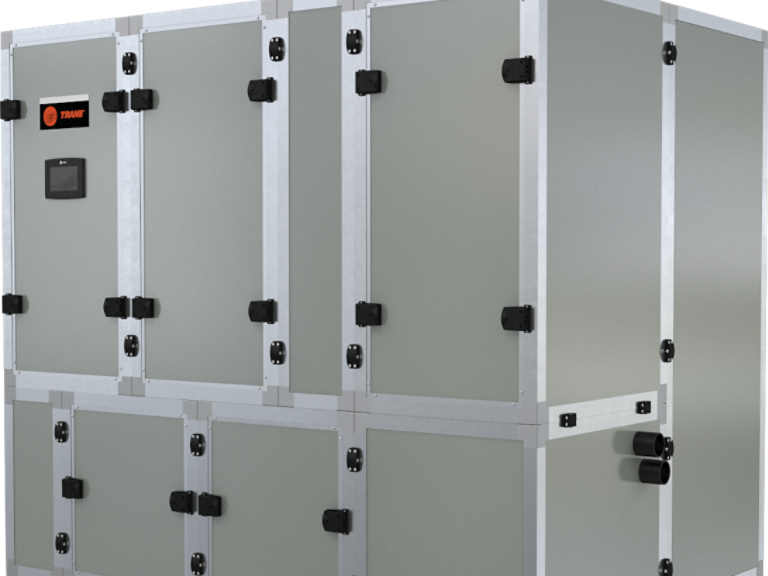

Trane Modular Self Contained HVAC Units with 20 - 80 ton capacity

Overview

The best energy-efficient modular self-contained HVAC replacement unit available.

The Trane Modular Self Contained (MSC) system is the most energy efficient and easy-to-install water-cooled system on the market today.

Capacity Range: 20 - 80 tons
Efficiency: Up to 20.8 IEER
Unit Controller: Symbio 500
Refrigerant: R-454B

Industry-Leading Energy Efficiency

The new Trane modular self contained units can improve full load efficiency by up to 30% versus legacy systems, and delivers industry-leading part load performance (up to 20.8 IEER).
Designed for Faster Installation

Think building blocks. Key components of the modular self contained system are in engineered cassettes for easy shipping and transport. Once everything arrives the system is assembled and commissioned in the mechanical room—fast. So the system can be back up and running within a 24-hour period.
Trane Designed Pre-Fab Engineering

The innovative cassette design offers the most adaptive self-contained footprint and breakdown available. Trane modular self contained cassettes are the smallest sections available in the industry for easy navigation through a building.

Product Information

Key Features

Best choice for replacement and floor-to-floor applications
Most energy-efficient self-contained system available
Smallest footprint, easy to set up—within 24 hours
Engineered for modular simplicity
- Each cassette fits through standard doorways, freight elevators
- Assembled system footprint is as small or smaller than existing unit footprint
- Evaporator cassette breaks down to move coil and cabinet structure into building
Easy, touch screen system management and connectivity

Model Specifications

Capacity Range: 20 - 80 tons
Efficiency: Up to 20.8 IEER
Unit Controller: Symbio 500
Refrigerant: R-454B

Product Warranty

Warranty includes replacement parts for twelve (12) months from the date of installation or eighteen (18) months from the date of shipment from supplier to customer, whichever comes first.

Product Literature

Brochure

Modular Sell Sheet

PKG-SLB029-EN

Integration Guides

Symbio™ 500 Integration Point List BACnet®

BAS-PTS037*-EN

Installation Operation Maintenance (IOMs)

Modular Self-Contained 20-80 Tons (R-454B)

PKG-SVX030*-EN

Catalog

Water Cooled - 20 to 80 Tons (R-454B)

PKG-PRC030A-EN
