Agility® Magnetic Bearing Centrifugal Chillers

Model HDWA and HTDA

Overview

Compact size without compromise.

The Trane® Agility magnetic bearing centrifugal chiller offers a compact, efficient, and sustainable thermal management solution. Ideal for new construction and existing buildings, the Agility chiller helps lower installation costs while modernizing system performance and versatility.

  • Capacity Range: 175-850 tons
  • Refrigerant: R-513A
  • Compressor Type: Centrifugal, Magnetic Bearing
  • Medium Pressure
  • Controller: Symbio® 800

  1. Energy-Efficient Operation

    With full-load and Integrated Part Load Values (IPLV) that outperform the ASHRAE® 90.1-2022 standard, the Agility magnetic bearing water-cooled chiller helps reduce electrical consumption and demand charges, contributing to lower operating expenses.

  2. Performance Backed by Trane

    The Agility magnetic centrifugal chiller features an oil-free, two-stage centrifugal compressor with a permanent magnet motor for stable operation across a wide range of operating conditions.

  3. Space-Saving Design, Cost-Effective Installation

    The Agility magnetic bearing water-cooled chiller features bolt-together construction and narrow footprint making installation easier in retrofits and tight mechanical rooms. The compact footprint minimizes structural modifications cutting labor, disruption, and installation cost.

  4. Reduce Your Environmental Footprint

    The Agility magnetic bearing water-cooled chillers use low-GWP R-513A, offering a 55% reduction in global warming potential compared to R-134a.

Product Information

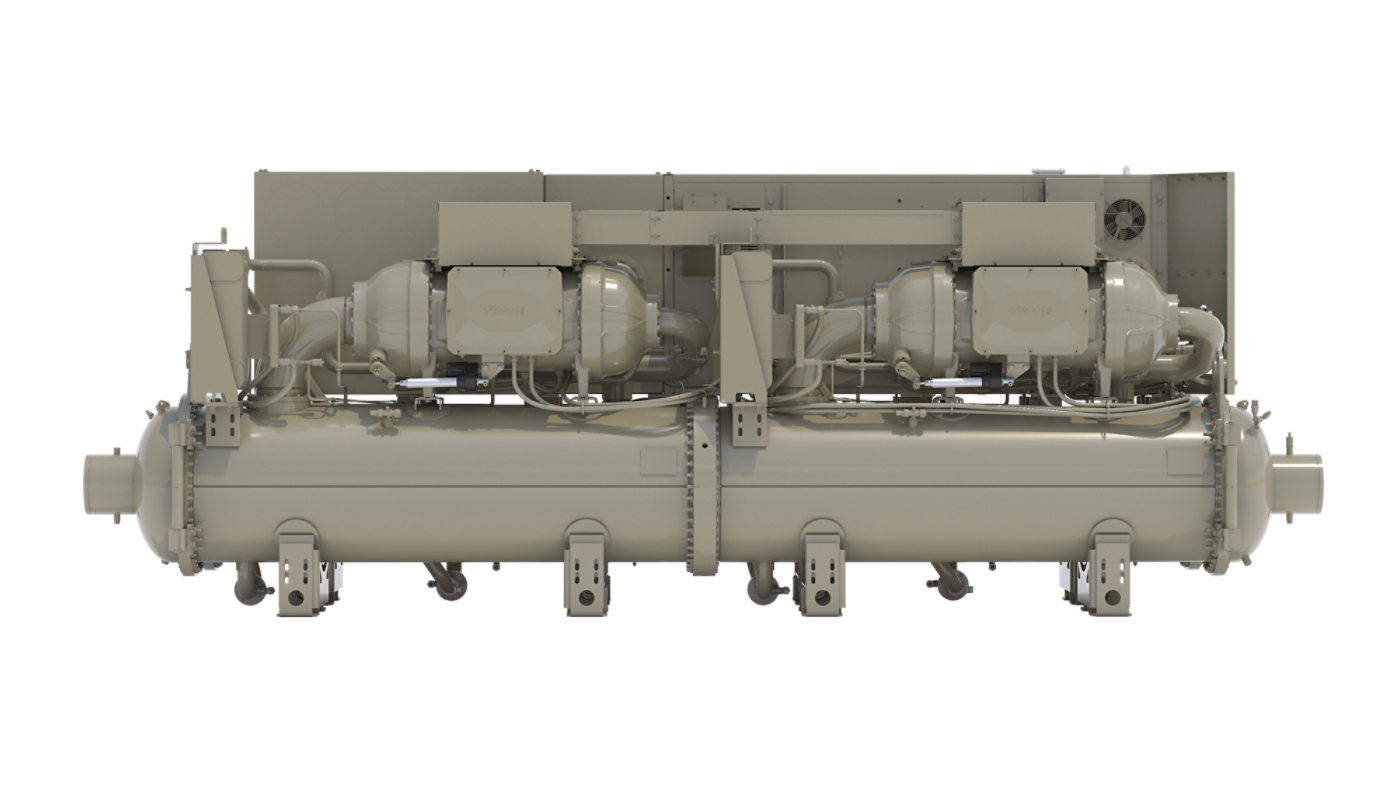

HDTA800 Back Background Image
  • The Agiility Twinplex™ magnetic bearing chiller extends the portfolio into higher tonnages, pairing dual compressors on the same proven magnetic bearing platform to deliver more capacity, up to 850T.
  • The direct drive, oil-free, multi-stage magnetic bearing centrifugal compressor with permanent magnet motor offers stable operation across varied conditions.
  • Bolt-together construction, a narrow footprint, and door-friendly configurations simplify retrofit installation.
  • The Agility magnetic bearing chiller HDWA and HDTA Twinplex™ models fit through a standard double door (72" x 80")2
  • The Agility magnetic bearing chiller model HDWA breaks down into two sections to pass through a standard single door (36" x 80").
  • An onboard Uninterruptible Power Supply (UPS) and Rapid Restart™ helps keep the Agility ready through power interruptions.
  • Symbio 800 serves as a launch point to connect to an array of Trane systems and services
  • Tracer® SC+ building automation system features pre-engineered Chiller Plant Control, enhancing the rotation, staging and sequencing of multiple units to meet dynamic building loads.
  • Agility magnetic bearing water-cooled chillers (model HDWA) feature a third-party verified Environmental Product Declaration and operate with low-GWP refrigerant R-513A
  • Available options and system enhancements include heat recovery, thermal energy storage, harmonic filters, belzona coating and marine waterboxes*

2The HDWA and HDTA models fit through standard double doors with most options; some options require further disassembly. See product catalog for details.

*Some available options may vary by unit. Please consult with a Trane representative for specific details.

Agility® Magnetic Bearing Centrifugal Chiller (Model HDWA)

  • Capacity Range: 175 to 550 tons4
  • Refrigerant: R-513A
  • Heat Recovery: Available options for integrated heat recovery up to 130°F (54°C)
  • Compressor Type: Direct drive, oil-free, multi-stage magnetic bearing centrifugal compressor
  • Equipment Controller: Symbio 800 for connectivity to Trane systems and services

Agility® Twinplex™ Magnetic Bearing Centrifugal Chiller (Model HDTA)

  • Capacity: 550 to 850 tons4
  • Refrigerant: R-513A
  • Compressor Type: 2 direct drive, oil-free, multi-stage magnetic bearing centrifugal compressors
  • Equipment Controller: Symbio 800 for connectivity to Trane systems and services

4Depends on water conditions

Product Literature

Looking for literature?

We’re committed to supporting your language preferences. If you require literature in English or French (CA), please submit your request here:

Request Literature

FAQs

Your questions about the Agility® Magnetic Bearing Centrifugal Chiller, answered.

The Agility chiller is available from 175 tons - 850 tons.

Yes! Agility has available options for integrated heat recovery up to 130°F (54°C). Please contact your local Trane Representative for more information.

The Agility chiller's motor voltage is 208-600V for the HDWA model and 460-600V for the HDTA model.

Yes! The Agility chiller with bolt-together design balances size and efficiency. The HDWA fits through a standard double door (72-inch by 80-inch) fully assembled and can easily be disassembled into two sections that fit through a single door (34-inch x 80-inch). The HDTA can be disassembled into sections to pass through a standard double door (72-inch by 80-inch).

The Agility chiller features an oil-free, two-stage centrifugal compressor with a permanent magnet motor for stable operation across a wide range of operating conditions.

Agility’s compressor utilizes magnetic bearings, which allow it to operate at higher speeds, eliminating the need for gears.

Agility chillers use low-GWP, medium-pressure refrigerant R-513A, offering a 55% reduction in global warming potential compared to R-134a. Benefits of using medium pressure refrigerant include high efficiency, high reliability, and low leak rates. With less refrigerant volume, medium pressure refrigerant also allows Agility to have a smaller footprint compared to chillers using high-pressure refrigerants.

A magnetic bearing chiller uses electromagnetic fields to suspend and stabilize the compressor shaft, avoiding direct contact between moving parts. This technology allows the compressor to operate without oil for lubrication.

One of the major advantages of magnetic bearings is their ability to handle higher speeds. Rolling elements and hydrodynamic bearings have upper limits when it comes to speed, but magnetic bearings allow these limits to be significantly increased. Higher speeds can be advantageous for compressor designers because increasing the impeller's speed allows for a smaller impeller, resulting in a more compact compressor and chiller. Using magnetic bearings also eliminates oil systems, removing the need for oil in the chiller.
